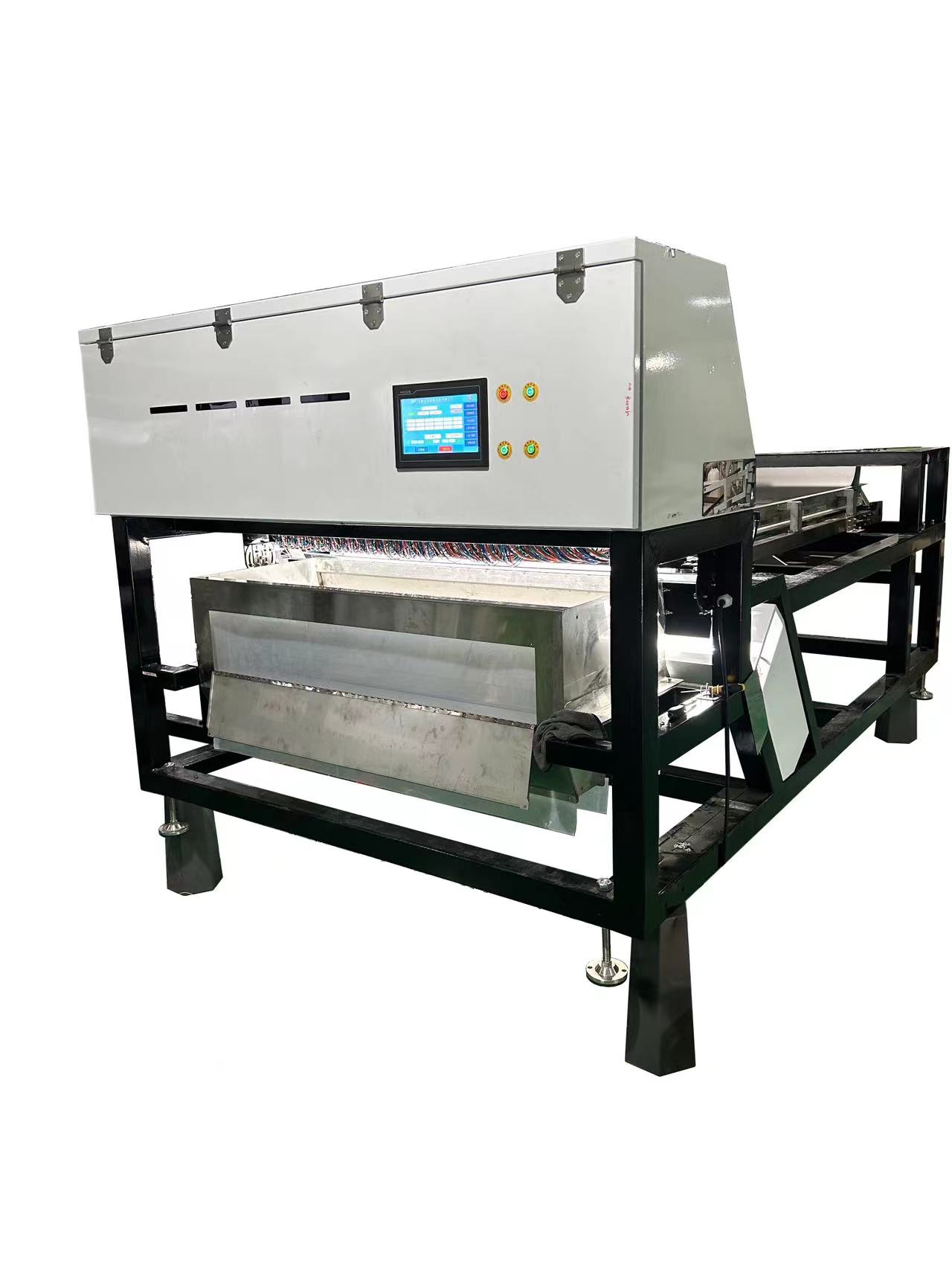

Latest Full-Color Imaging and Analysis Technology for raspberry frozen berry strawberry color sorter
| MODEL | WYB4 |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥10:1 |
| Capacity(kg/h) | 1000 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 6 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 2000-4000 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 3189*1910*1510 |
| Weight(kgs) | 1500kg |
| Package | Plywood case |
| Package Size mm | 3300*2070*1620mm |
What Is a Color Sorter?
A color sorter is also called a color sorting machine or an optical sorting machine. It is an artificial intelligence sorting machine to sort granular materials. It could separate the materials by color, size, shape, and type.
A color sorter features advanced optics with precision electronics to classify solids particles. By integrating the advanced CCD, the image capturing process makes effective sorting.
Furthermore, the pneumatic ejection device helps you remove strong-headed impurities or defectives intelligently.
Types of Color Sorters
Belt-Type VS Chute-Type
There are two types of Color sorter according to the machine construction.
They are belt-type and the chute-type.
The chute-type sorter is widely used for all kinds of common materials, the belt-type sorter can sort all materials from the chute-type sorter. Of course Its versatility has led to higher prices in them.
Chute Color Sorter vs Belt-type color sorter
- Material move along the downfall chute vs but in Belt: particle will move on the belt
- Particle will easily be broken when falls down chute; But belt can ensure stationary materials to reduce the broken rate
- Price affordable; but belt will be higher in price
Remarks: those elastic or round particle is suitable for belt type sorter
-
Working Principles
The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.
Color Sorter Machine Feeding system
It consists of feeding hopper, vibrating feeder, and chute. Raw material enters into vibrating feeder from the feeding hopper, then automatically be arranged into a series of continuous current line by vibration and a guiding mechanism, and fall to a detection zone at a constant speed after being accelerated by the chute. to ensure that the material is clearly present in the sorting cabinet. The feeding system also controls the capacity of the color sorting machine in addition to the function of providing raw material.T through the adjustment of the vibration amount of the feed hopper flow control plate and the vibration hopper, the control of the output of the color sorter per unit time can be realized.
Optoelectronic system
The Optoelectronic system is the core part of the color sorting machine, which is mainly composed of an LED light source, background plate, CCD lens, and related auxiliary devices. The light source provides stable uniform illumination of the material being tested and the background plate. The CCD lens converts the reflected light of the material to be measured into an electrical signal in the detection area. The background plate provides a reference signal for the electronic control system.
Sorting system
The sorting system consists of accessories such as sorting cabinet, nozzles, air supply. The nozzle has been experimentally proved that the nozzle spacing and the number of nozzles are one of the key factors affecting the accuracy of the color sorter.
Cleaning system
The cleaning system consists of cylinders, glass cleaning brushes, and other components. Because some items come with the dust and other impurities that may adhere to the glass during the color sorting process. Once the dust and impurities are attached to the window glass, the optoelectronic system may cause chain-chain problems such as false detection, which will affect the color sorting accuracy and carryover ratio.
Operating System
The large-screen wide-angle touch screen is used to preset multiple color sorting modes for customers. And establish a friendly man-machine interface, according to the specific conditions of materials convenient and quick to achieve adjustment.
Examples of color sorting:
From Customer's Site:
Questions :
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C ,T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
Certificate :
Packing And Delivery :
Contact US:
High Efficiency
Compared with manual sorting, a color sorter machine is labor saving, time saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
-
Latest full-color imaging and analysis technology,high-speed processing,accurate identification.
-
High level AI self-learning function,one-key automation,user friendly interface,easy operation.
-
Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.
-
Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
-
High and specification ensures high stability with high sorting accuracy small carry over and low energy.
-
Clound computing,massive dated analysis,multi-camera identification,high accuracy.
-
Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.
-
Color Sorter Machine
Ultra-high response speed, fast and accurate rejection, bring out beyond imagination!
1.Near-end WIFI intelligent connection, opening a new era of unattended operation
2.Remote cloud interaction, big data platform for the equipment to provide uninterrupted cloud computing, intelligent matching of the best color selection scheme Unique multi-spectrum confocal technology, accurate rejection of grain mold.
3.Powerful selection of yellow, anti-selection function, to further enhance the belt out at the same time saving 20% of gas
4.The first LED parallel spotlight technology, high brightness, low heat generation, power saving and long life.
5.The first intelligent ash cleaning control technology, large equipment, greater output
64 Channels Color Sorting Machine
One chute machine have 64 small channels, sorting materials based on the color difference of solid particles.
Ultra-high-precision sorting effect to enhance your product grade and value. Customer friendly interface makes your daily work simple and convenient
Features of Color Sorter Machine:
-
Latest full-color imaging and analysis technology,high-speed processing,accurate identification.
-
High level AI self-learning function,one-key automation,user friendly interface,easy operation.
-
Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.
-
Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
-
High and specification ensures high stability with high sorting accuracy small carry over and low energy.
-
Clound computing,massive dated analysis,multi-camera identification,high accuracy.
-
Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.
